Data
| Brand: | WAGO® |
| Series: | 221 |
| Model: | 2411 |
| Connection technology: | Cage Clamp® |
| Nominal diameter: | 4mm / 14 AWG |
| Stripping length: | 11mm / 0.43 inch |
| Conforms to: | UL - 600V / 20A |
| Conforming: | EN 60664 - 450V / 4KV / 32A |
| Colour: | Transparent / Orange |
| Delivery: | Per 12 pieces in blister |
| Data sheet: | Data sheet Safety Article: 221-2411 |
Information

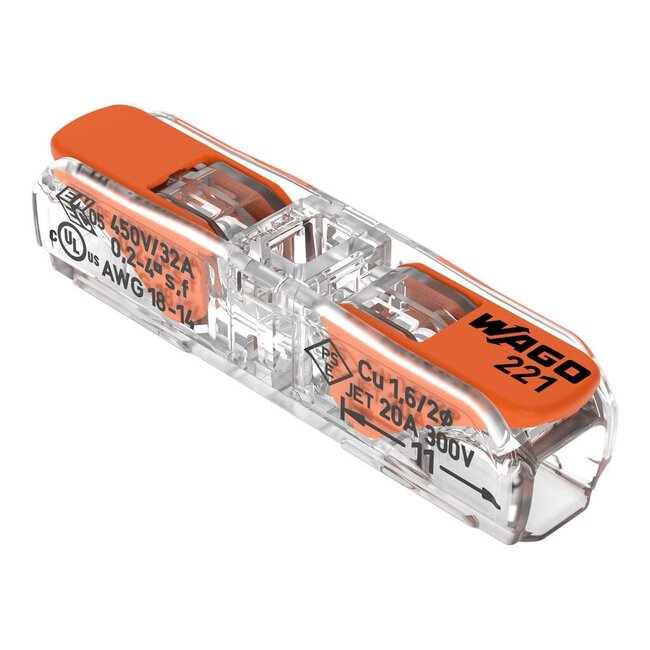

DIN rail connector with handles Series 221 with CAGE CLAMP®
The conduit connector with levers with the item number 221-2411 ensures a flawless electrical installation. From intercom wiring to the
connecting an electric cooker - the compact series 221 terminal connects different types of conductors quickly and safely. These
connection terminals with a rated voltage of 450 V are made for currents up to 32 A. They can therefore also be used for heavy-duty
equipment. This transit connector with levers requires a stripping length of 11mm. This product is equipped with CAGE CLAMP® technology.
equipped. The proven and maintenance-free universal CAGE CLAMP® connector allows the connection of all types of conductors without
having to pretreat the conductors. The crimping of conductor end sleeves is thus no longer necessary. The dimensions in width x height x depth are
(8.1 x 8.9 x 35.5)mm. Depending on the type of conductor, the transit connector with levers is made for conductor cross sections from 0.2 mm² to 4 mm².
The 221 Series 221 terminal with lever convinces with an innovative design for different cable cross-sections. The WAGO lever clamp
is therefore an unmistakable trademark in electrical connection technology. The flat levers, which fit seamlessly into the 221 basic element, look like a closed terminal block when closed.
look like cast iron when closed and can be positioned neatly and without annoying edges in any enclosure. Thanks to the
wide built-in shape of the individual lever elements, they can be operated perfectly and without tools for comfortable
connection of the conductors. The transparent housing allows direct visual inspection for correct and standard-compliant contact of solid, multi-core
and fine-wire conductors. The "keyboard look" of the levers is a perfect combination of the functional and aesthetic
"Made by WAGO" connection technology.
when using Note: Observe handling and safety instructions!
- Only to be used by an electrician!
- Do not work under voltage!
- Only use for the intended purpose!
- Observe national regulations, standards and directives!
- Observe technical data of the products!
- Observe number of permissible potentials per terminal!
- Do not use damaged/dirty parts!
- Observe conductor types, cross-sections and stripping lengths!
- Insert conductors as far as possible!
- Use original accessories!
Only pass on or distribute including instructions for use!
