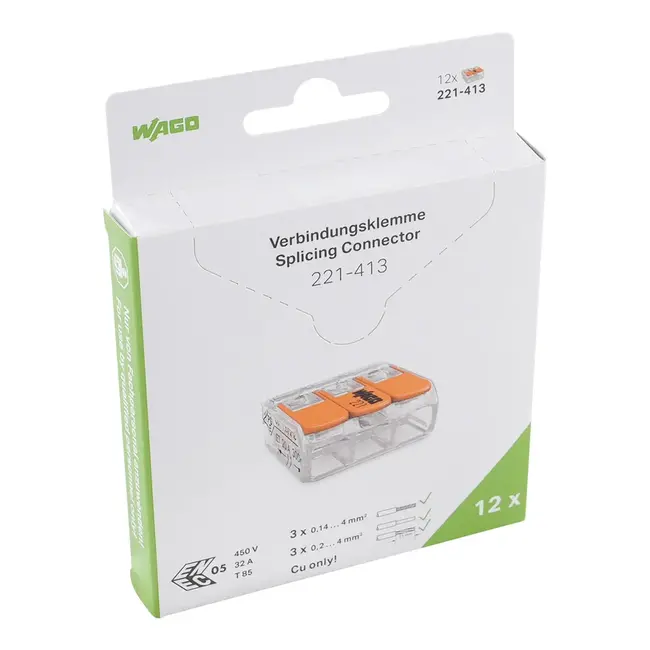

Data
| Brand: | WAGO® |
| Series: | 221 |
| Model: | 413 |
| Connection technology: | Cage Clamp® |
| Nominal diameter: | 4mm / 14 AWG |
| Stripping length: | 11mm / 0.43 inch |
| Conforms to: | UL - 600V / 20A |
| Conforming: | EN 60664 - 450V / 4KV / 32A |
| Colour: | Transparent / Orange |
| Delivery: | Per 12 pieces in blister |
| Data sheet: | Data sheet Safety Article: 221-413 |
Information
Connection clamp with levers with the item number 221-413 promises trouble-free electrical installation. From intercom wiring to connecting an electric cooker - the compact series 221 connection terminal connects different types of conductors quickly and safely. These connection terminals with a rated voltage of 450 V are produced for currents up to 32 A. They can therefore also be used for heavy equipment. A stripping length of 11 mm is required for conductor connection of connection clamp with levers. This product is based on CAGE CLAMP® technology. The universal CAGE CLAMP® connection offers you a reliable and maintenance-free connection technology for connecting all types of conductors using a cage clamp. No pretreatment of the conductors is required, e.g. by crimping up conductor end sleeves. The dimensions are in width x height x depth (18.8 x 8.4 x 18.6) mm. Depending on the type of conductor, connection clamp with levers is made for conductor cross sections from 0.2 mm² to 4 mm².
The 221 series connection clamp with lever convinces with an innovative design for different conductor cross-sections. The WAGO clamp with lever is therefore an unmistakable trademark in electrical connection technology. The flat levers, which fit seamlessly into the 221 base element, look like a cast when closed and can be positioned neatly and without interfering edges in any enclosure. Thanks to the wide built-in shape of the individual lever elements, they can be operated perfectly and without tools for convenient connection of the guides. The transparent housing allows direct visual inspection for correct and standard-compliant contact of solid, multi-core and fine-wire conductors. The "keyboard look" of the levers is a perfect combination of the functional and aesthetic connection technology "Made by WAGO".
This product is suitable for specific Ex applications (see product data sheet).
when using Note: Observe handling and safety instructions!
- Only to be used by an electrician!
- Do not work under voltage!
- Only use for the intended purpose!
- Observe national regulations, standards and directives!
- Observe technical data of the products!
- Observe number of permissible potentials per terminal!
- Do not use damaged/dirty components!
- Observe conductor types, cross-sections and strip lengths!
- Insert guides up to the stop!
- Use original accessories!
Pass on or distribute only in accordance with the instructions for use!
