Data
| Brand: | WAGO® |
| Series: | 221 |
| Model: | 412 |
| Connection technology: | Cage Clamp® |
| Nominal diameter: | 4mm / 14 AWG |
| Stripping length: | 11mm / 0.43 inch |
| Conforms to: | UL - 600V / 20A |
| Conforming: | EN 60664 - 450V / 4KV / 32A |
| Colour: | Transparent / Orange |

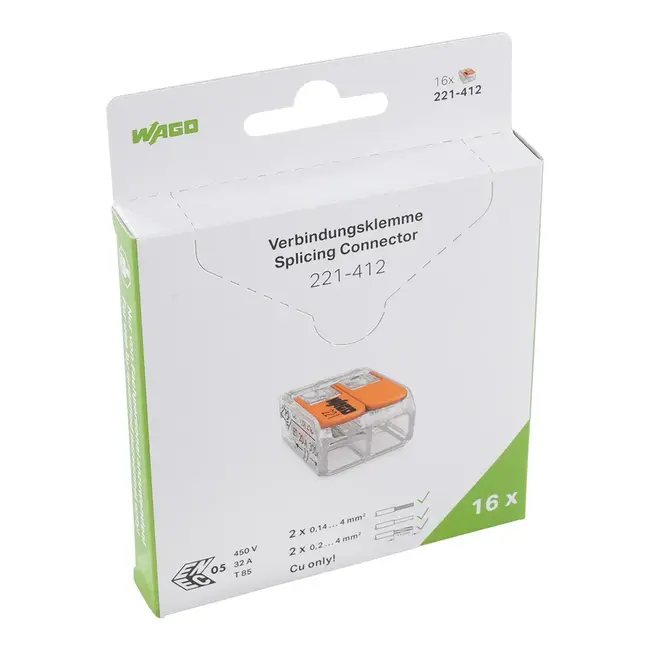

| Delivery: | Per 16 pieces in blister |
| Data sheet: | Data sheet Safety Article: 221-412 |
Information

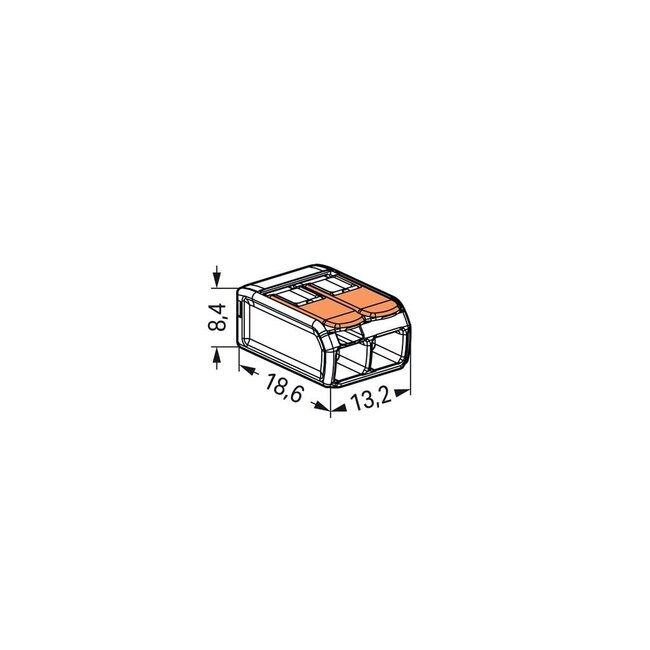

Connection clamp with levers has article number 221-412 and ensures trouble-free electrical installation. From intercom wiring to connecting an electric cooker - the compact series 221 connection terminal connects different types of conductors quickly and safely. These connection terminals with an assigned voltage 450 V are used for currents up to 32 A. The product is therefore also suitable for heavy equipment. A stripping length of 11 mm is required for conductor connection of connection terminal with levers. This product is based on CAGE CLAMP® technology. The universal CAGE CLAMP® connection offers you a reliable and maintenance-free connection technology for connecting all types of conductors using a cage clamp. No pre-treatment of the conductors is required, e.g. by crimping up conductor end sleeves. The dimensions in width x height x depth are (13.1 x 8.3 x 18.6) mm. Connection clamp with levers is suitable for conductor cross sections from 0.2 mm² to 4 mm², depending on the type of conductor.

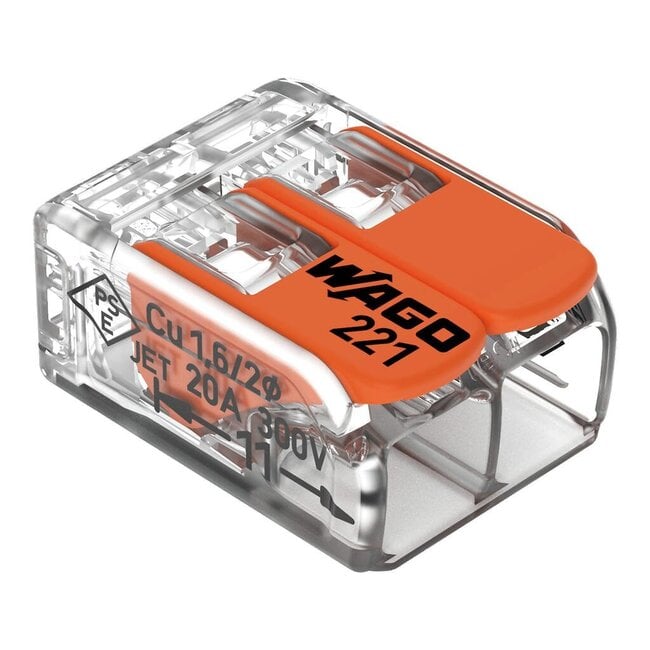

The 221 Series 221 connection clamp with lever convinces with an innovative design for different cable cross-sections. The WAGO clamp with lever is therefore an unmistakable trademark in electrical connection technology. The flat levers, which fit seamlessly into the 221 base element, look like a cast when closed and can be positioned neatly and without interfering edges in any enclosure. Thanks to the wide built-in shape of the individual lever elements, they can be operated perfectly and without tools for convenient connection of the guides. The transparent housing allows direct visual inspection for correct and standard-compliant contact of solid, multi-core and fine-wire conductors. The "keyboard look" of the levers is a perfect combination of the functional and aesthetic connection technology "Made by WAGO".
This product is suitable for specific Ex applications (see product data sheet).
when using Note: Observe handling and safety instructions!
- Only to be used by an electrician!
- Do not work under voltage!
- Only use for the intended purpose!
- Observe national regulations, standards and directives!
- Observe technical data of the products!
- Observe number of permissible potentials per terminal!
- Do not use damaged/dirty components!
- Observe conductor types, cross-sections and strip lengths!
- Insert guides up to the stop!
- Use original accessories!
Pass on or distribute only in accordance with the instructions for use!
- N/A
Tape-Deal.com sells and delivers Wago Connection Products from their own stock and Warehouse in Middelburg.
If the product is in stock and ordered and paid for before 17:00, you can be sure that it will be dispatched by Tape-Deal.com on the same working day.
Wondering if we have the desired quantities in stock? Then please contact our customer service team.
If you are unsure whether WAGO® Products are suitable for your job?
Please contact us: [email protected]
Would you like to receive a customised quote before ordering?
Or do you have certain purchasing conditions elsewhere? Then please contact our [email protected]
Safety
Note: Please observe handling and safety instructions!
Warranty
Only on manufacturing defects.
Right of return
You have a 14-day trial period, if you do not like the product or the colour is not right, you can only return the product when the outer packaging (seal) is closed.
